MAHLKÖNIG EK OMNIA

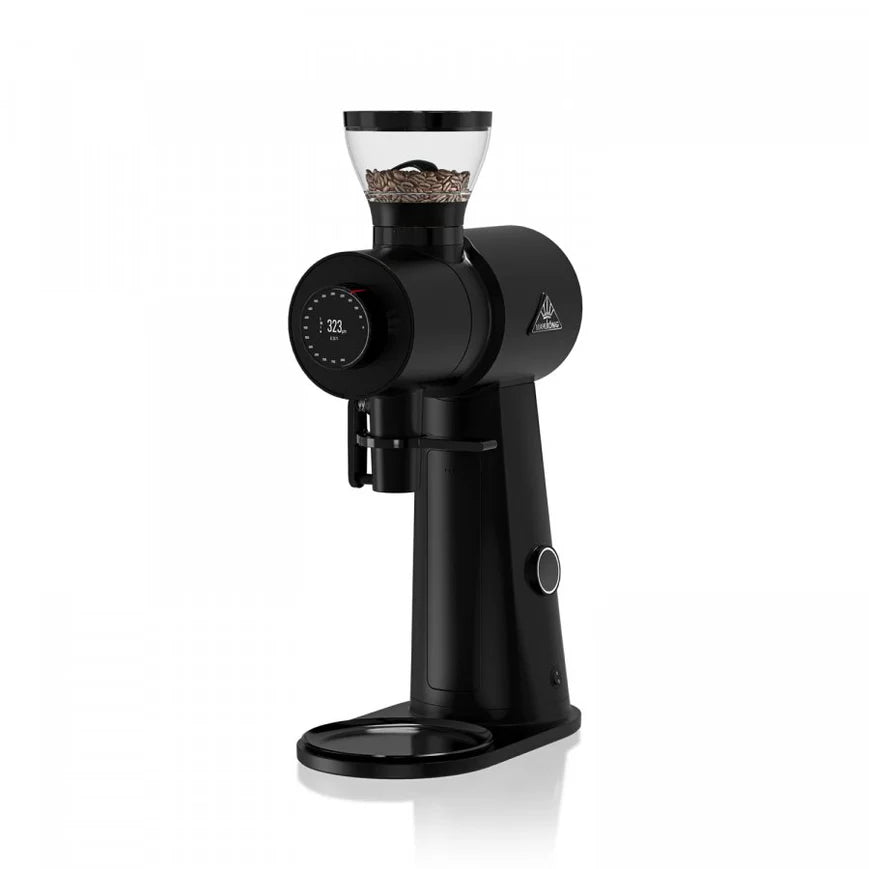

Meet the EK Omnia

The EK Omnia grinder is equipped with a suite of advancements that make it an indispensable tool for high-demand, high-expectation settings. The new technological innovation of Library Mode allows users to save their favorite grinding recipes, including notes for the bean name and target coffee grams. In combination with the Pre-Dosing Unit (PDU), a volumetric hopper*, EK Omnia automatically adjusts to the exact burr distance in microns and grind time, according to the recipe. The front-facing LED screen is a powerful and easy-to-use interface to set ultra-precise micro-adjustments of the grind size.

Saved grinding recipes seamlessly integrate volumetric dosing with micron-level grind size settings. The grind size, meticulously measured in real-time by micron distance, eliminates any guesswork or reliance on arbitrary dials. When a recipe is selected, the grinder instantly fine-tunes both the burr distance and pre-dosing unit to precisely match the chosen parameters.

Dial in once, repeat easily

Save bean name and target coffee grams as recipes in the Library, then have EK Omnia automatically adjusting grind size and dose.

• Select a recipe and the EK Omnia will auto-adjust to your settings
• Repeatable consistency across hours and shifts
• Grind-by-Time and manual grinding offer total control at your fingertips

Made for high-volume efficiency

With a volumetric pre-dosing hopper unit, magnetic adjustable portafilter holder, and efficient BLDC motor, the EK Omnia prioritizes grinding and workflow efficiency.

Precision superpowers

The EK Omnia ushers in a new era of coffee grinder technology, offering reliable and unparalleled grinding precision dose after dose.

• Grind size measured by real-time micron distance between burrs, not arbitrary dials
• Stepless grind size adjustments made by dial turn, touch screen, or saved recipe
• Industry-leading 98mm steel burrs give baristas uniformity with every dose

An aesthetic for the ages

We celebrate the craft with a sleek design inspired by the iconic EK43, an intuitive touch interface on the main dial, and interchangeable hopper options.

The Next Great Leap in Coffee Grinding

• 3 grinding modes:
• Combined manual and automatic grind size adjustment enables fine and ultra-precise micro-adjustments: Individualized and innovative stepless grind size adjustment approach that combines manual, automatic and touch grind size adjustment (GSA) options to cater to any barista preference and ultra-precise micro-adjustments.
• 2 new groundbreaking accessories
• Ultra-efficient Brushless DC Motor for nearly silent and heatless grinding, higher energy efficiency, reduced vibration, and reduced coffee spray
• 98mm cast steel burrs made in Germany - same burrs as in our loved and iconic EK43
• HMI display with touchscreen
• Easily removable chute with bag holder and integrated spotlight
• Special back cover design with cooling ribs to transfer out heat
• Start/Stop button with LED illuminating O ring for power status
• WiFi module for updates and remote access
• Magnetic drip tray
• Environmentally friendly packaging made of recyclable cardboard

Additional Accessories*:

• Pre-Dosing Unit (PDU) for volumetric dosing of Library Mode recipes eliminates manual weighing of coffee beans and feeds right gram of beans defined in Library Mode recipes into the grinding chamber
• Portafilter Holder attaches to the front magnetically to support hands-free portafilter usage for espresso grinding on EK Omnia

*can be purchased separately

Voltage // frequencies // phases:

• 200-240 V // 50 Hz // 1~
• 100-120 V // 60 Hz // 1~

Idle speed: 1500 rpm (50 Hz)

Burr diameter: 98 mm

Burr material: Cast steel

Burr grind life (median setting): ca. 6.000 kg

Average grinding capacity*: 11.5-13.5 g/s

Bean hopper capacity: approx. 250 g

Max nominal power: 750 W

Dimensions (w x h x d): 21.4 x 66.3 x 39 cm

Dimensions of packing (w x h x d): 25.9 x 62.6 x 59 cm

Net weight: 24 kg

Gross weight: 28 kg

Certifications: CE, CB, ETL Safety, ETL Sanitation

Standards:

• IEC/EN 60335-1
• IEC/EN 60335-2-64
• ANSI/UL 763
• CSA-C22.2 No. 195

Standard colors (other colors on request):

• Fine textured finish, matte black
• Fine textured finish, matte white

Optional Accessories:

• Adjustable Portafilter Holder (can be switched with removable front cover)
• Pre-Dosing Unit (PDU) = Volumetric dosing hopper 250g
• 98 mm cast steel burrs for Turkish fine

*Depends on the grinding goods and the chosen degree of fineness.
All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.

Dimensions (w x h x d):21.4 x 66.3 x 39 cm

Warranty Information: 12 Months Parts Only
